Cyclone separators are proven to be particularly efficient for separating dust from gas streams. They combine optimal separating efficiency with high air-to-solids ratios and a minimum space requirement.
Our machines can dedust a wide range of untreated gas flow rates and have an optimal pressure drop that varies from 5 mbar to 15 mbar.
Our cyclone separators come in two versions, mild steel and stainless steel, to satisfy all hygienic requirements such as those in the food processing and milling industries.
Bühler offers a wide range of sizes for all possible processes.
Cyclone separators are used to separate dust from the aspirated air. For moderate requirements regarding residual dust content or a small amount of fine dust, the purified air can be exhausted into the environment.

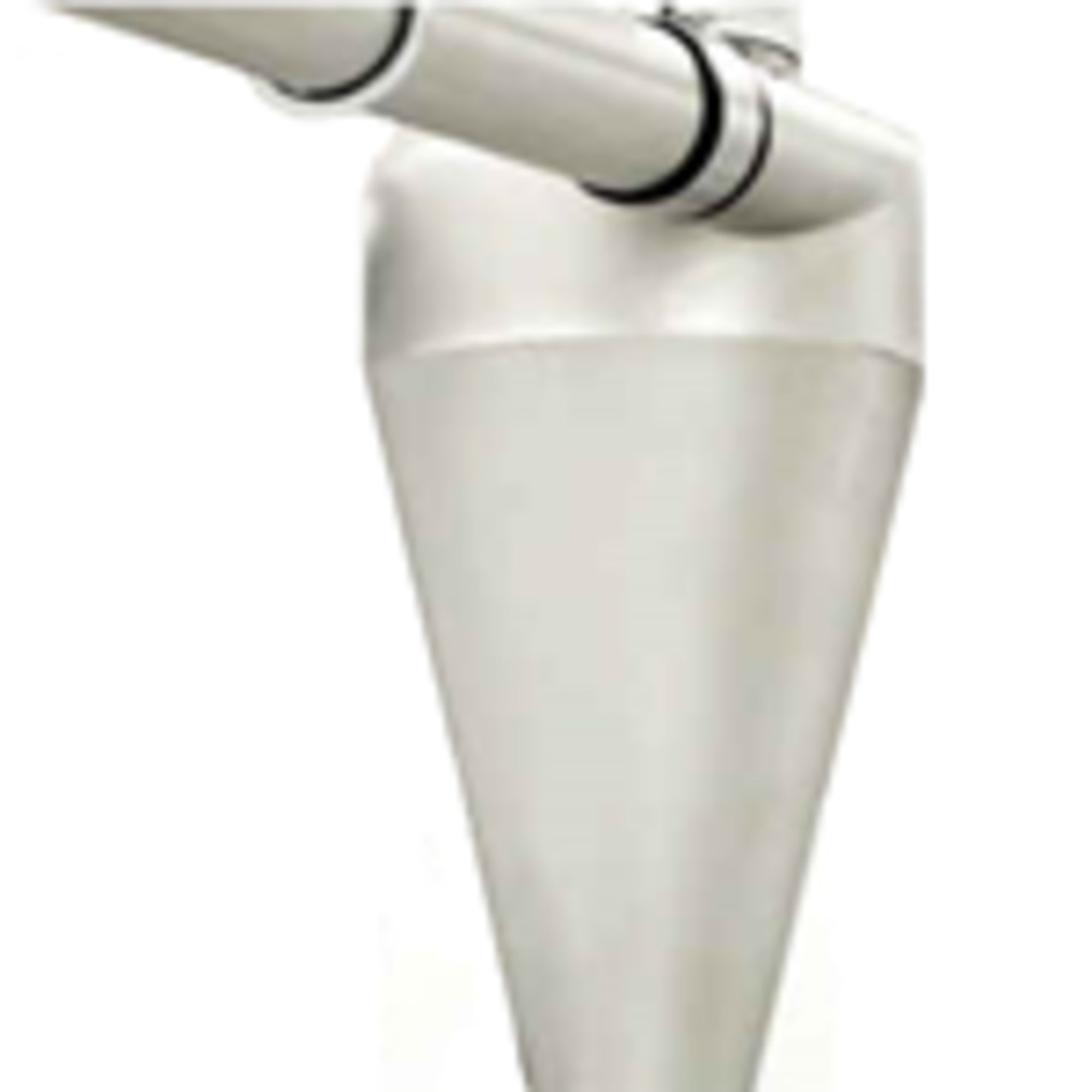

Our cyclone separator MGXE is a compact separator with a volumetric flow rate of 2.5 to 60 m³/min, and an optimal pressure drop of 5 to 10 mbar. It combines optimal separating efficiency with high air-to-solids ratios and a minimum space requirement.
Our cyclone separator MGXG is a large separator with a volumetric flow rate of 35 to 600 m³/min, and an optimal pressure drop of 7 to 15 mbar.
Our cyclone separator MGXH is a compact separator with a volumetric flow rate of 2.5 to 60 m³/min, and an optimal pressure drop of 5 to 10 mbar. It combines optimal separating efficiency with high air-to-solids ratios and a minimum space requirement.
